Advme8088
VXS™/VMEbus™ CPU Board
Equipped with Intel® Xeon® D-1700 processor
Features
- Intel® Xeon® D-1700 processor
- Soldered, ECC DDR4-2400 16GB (max) Dual Channel RAM
- XMC / PMC 2 slots
- M.2（PCIe3 x4/SATA）
- Gigabit Ethernet 2 ports
- VME64x, 2eSST
- VXS™ P0 Connector
- Serial RapidIO® Gen2 4x 2 ports
- 6U, 1 slot width
- Single 5V power supply
- VxWorks®7
Description

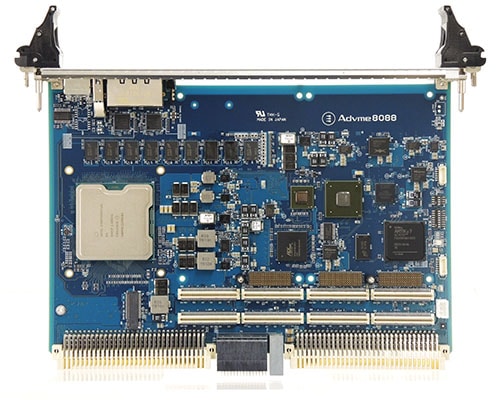

The Advme8088 is a 6U 1-slot VME CPU board equipped with the Intel® Xeon® D-1700 processor. The VME form factor, which is widely used in many industrial devices, allows customers to reduce their man-hours and development time for upgrading existing systems.
The Intel® Xeon® D-1700 processor has more cores and faster interface, making it ideal for applications that handle a large number of inputs and processes simultaneously.
The Serial RapidIO® interface connected to the VXS™ and XMC connectors enables seamless high-speed communication with peripheral boards and external devices.
The two XMC slots are both connected to the CPU via PCI Express® Gen3 x8 and support high-speed network interfaces and accelerators.
Thanks to the on-board RAM, it is ideal for applications that require high reliability and vibration resistance.
Specifications
| Processor | Intel® Xeon® D-1700 processor | |
| Memory | 2x memory-down DDR4-2400 with ECC support (up to 16GB) | |
| Storage | Embedded | 1x M.2 socket (Key-M, Type2242, PCI Express® Gen3 x4 or SATA 3.0) |
| Front panel I/O | Ethernet USB Serial | 2x 100/1000Mbps - RJ-45 1x USB3.0 (Type A) 1x RS-232C - RJ-45 |
| Backplane I/O | VME P1/P2 VXS P0 | VMEbus™ C.3, ANSI/VITA1-1994 VME64, ANSI/VITA1.1-1997 VME64 Extensions, ANSI/VITA1.5-200 2eSST 2x ANSI/VITA41.2-2006 VXS Serial RapidIO® Gen2 4x |
| Other | RTC Watchdog Sensors | Yes Yes Temperature, Voltage |
| Power | Input Consumption | 5VDC TBD |
| Environment | Operating Temp. Storage Temp. Humidity | 0 to 60°C (forced-air) TBD TBD (No condensation) |
| Certifications | Environmental | RoHS (2011/65/EU，(EU)2015/863) |
| Mechanical | Dimensions | 6U, 4HP, single-slot |
| Software | OS | Wind River® VxWorks® 7 32/64bit |
