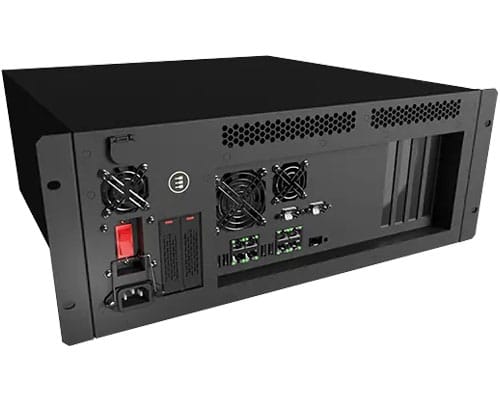

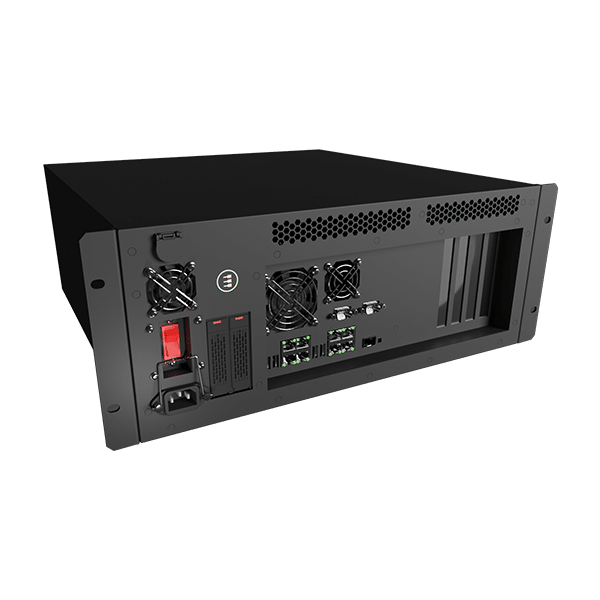

The ReliaCOR 34-19 is a 4U 19 inch industrial rackmount PC equipped with the Intel® Xeon® D-1700 processor. It supports 4 ports each of 10GBASE-T and 2.5GBASE-T, plus SFP+ for 10Gb Ethernet optical modules, making it suitable for IIoT applications that connect a variety of devices.
Thanks to the two U.2 NVMe drive bays which enable easy storage upgradablity, it is especially suitable for data loggers that require high speed and large capacity.
Compared to conventional industrial PCs, it supports more computing cores, RAM, and network interfaces, making it ideal for virtual machine usage.
In addition to the use of COM-HPC modules for the CPU, the expansion part also adopts a modular configuration, which allows for flexible semi-customization such as function changes, connector changes, and additional functions according to the customer’s application.
|Processor||Intel® Xeon® D-1700 processor|
|Memory||DDR4 UDIMM/RDIMM x4 (up to 256 GB, ECC/nonECC)|
|Storage||Embedded||1x M.2 SATA/NVMe SSD (SATA 3.0 / PCI Express® 3.0 x4)|
|Removable||2x U.2 NVMe (PCI Express® 3.0 x4)|
|Rear Panel IO||Ethernet||4x 10GBASE-T, 1x SFP+, 4x 2.5GBASE-T (Time Sensitive Networking Support planned)|
|USB||2x USB3.0 (Type A), 2x USB2.0 (Type A)|
|Other||PCI Express slot||4x PCI Express® Gen4.0 (x4 slot) or 1x PCI Express® Gen4.0 (x16 slot), 2x PCI Express® Gen3.0 (x1 slot)|
|RTC||Yes, with C2032 Coin Battery|
|LED||Power, SATA Activity|
|Environment||Operating Temp.||0 to 50°C|
|Humidity||TBD (no condensing)|
|Mechanical||Dimensions||TBD x TBD x TBD mm (WxDxH) - 4U 19” rackmount|
|Software||OS||Linux, Windows® 10 IoT Enterprise|
